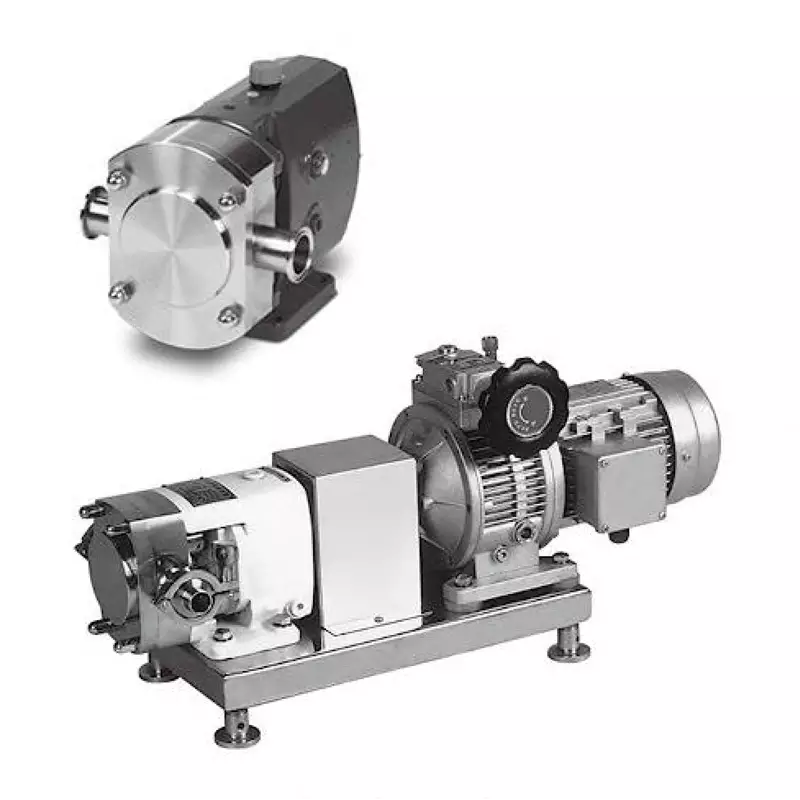

Sanitary Rotary Lobe Pump

Food Grade Rotary Lobe Pump is a positive displacement pump, Robust construction, low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard, the most common pump used to transfer high viscosity fluids solid and particle,  It offers a comprehensive range of pumps intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…

Get a free quoto

Operation Principle

Rotor pump is also named rotary lobe pump,three-lobe pump,sole pump,etc.When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve,it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of  A→B→C→D.When it revolves to position A,only housing I is filled  with medium;when it  revolves to position B,housing B encloses part of the medium,when it goes to position C,housing A encloses medium,and finally it goes to position D,then housing A,B and II are interlinked and the medium  is transported to the outlet.As this process is repeated, medium(material)is transported continuously.

Working Principle

sanitary rotary lobe pump

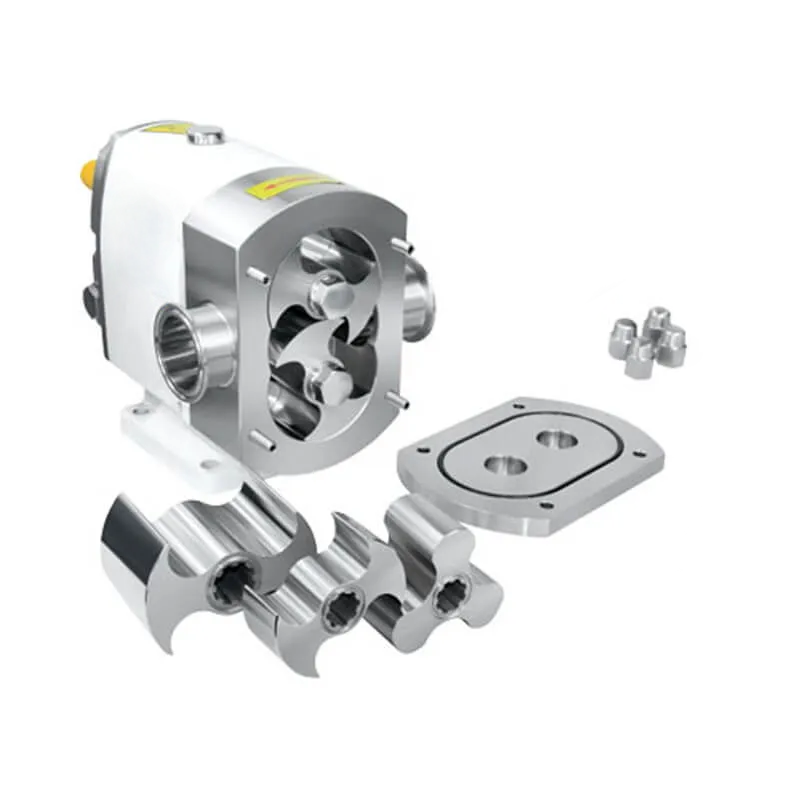

Design and Features

sanitary rotary lobe pump



  • Horizontal TUL series.
  • Vertical TUR series.
  • Bare-shaft construction.
  • Tri-lobe rotors.
  • Hygienic design of the attachment of the rotors.
  • Sanitary mechanical sealing, internal assembly.
  • Easy cleaning and maintenance.
  • Connections: clamp(standard).
  • Applied to CIP cleaning and SIP sterilization.



Materials

  • Investment casting pump body: AISI 304/316L.
  • Cast iron support and gear box: QT450-10.
  • Gaskets (standard): EPDM(FDA 177.2600).
  • Mechanical sealing(standard): C/SiC/EPDM.
  • Internal surface finish: Ra≤0.6µm.
  • External surface finish: Mirror polished.

Technical specifications

  • Max. flow: 90m3/h/395 GPM
  • Max. pressure: 12bar/174 PSI
  • Max. working temperature: 150°C/302°F
  • Max. rev: 1450 rpm

Options

  • Mechanical sealing: SiC/SiC, TgC/ Sic
  • Gaskets: FPM (VitorR) or PTFE
  • Relief valve at the front cover or external by-pass
  • Flushed single or double mechanical seal
  • Vertical TUR series or Horizontal TUL series
  • Built-in safety valve
  • End-face heat jacket
  • Complete heat jacket
  • Adjustable feet
  • Different drives and fixes:
    1. Manual adjust continuously variable transmission
    2. Frequency converter adjust motor gear box
    3. Fixed speed output transmission
  • Assembly on a stainless steel baseplate
  • Inlet & Outlet Connection: Tri-Clamp, Threaded to DIN, SMS, 3A, RJT, IDF, ISO etc
  • Motor type B5, motor frequency 50HZ, 60HZ
  • Voltage 220-240, 360-400, 420-460, 630-690 (V)
